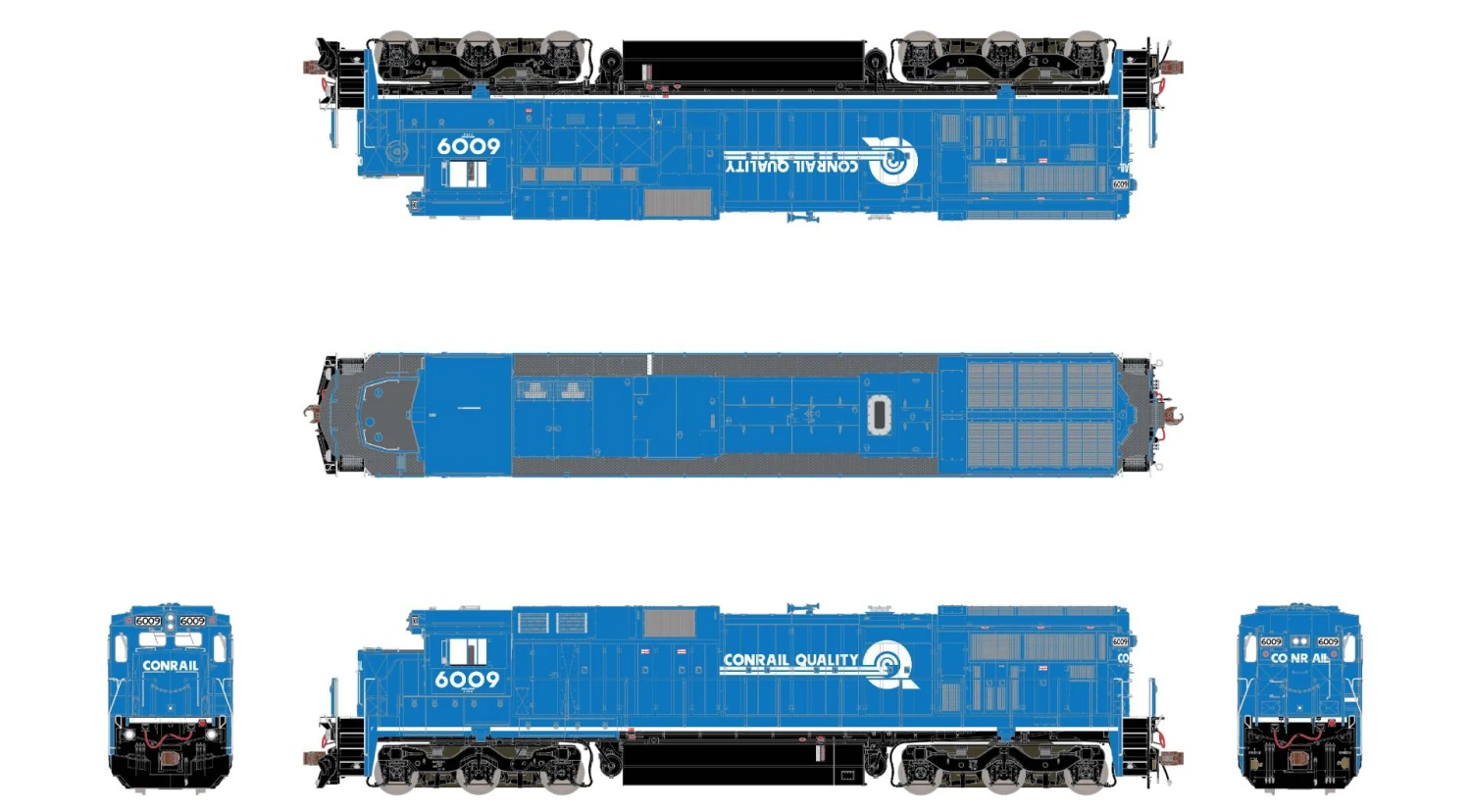

ScaleTrains 38760 Rivet HO GE C39-8 Phase III “Ditch Lights” Conrail Quality CR 6009 DC

As the 1980s began, and with the success of their DASH 7 series, introduced in 1976, locomotive builder General Electric sought to build upon their momentum with an improved line of locomotives. Based upon technological advances and customer feedback, GE debuted its “Dash 8” series in 1983. Featuring improvements to the FDL series prime mover and microprocessor controls, the DASH 8 line promised improved performance, as well as improved reliability and maintainability, over their DASH 7 predecessors. One of the first models to be unveiled was the C39-8, with a pair of testbed units built and painted for Norfolk Southern, numbered NS 8550-8551.

While keeping the clean contours of the long hood and rounded cab roof, two characteristics of the DASH 7 series, these new DASH 8s featured larger, angular radiator “wings” at the rear of the carbody, an angular low short hood, and a boxy dynamic brake and clean air compartment at the front of the long hood, which jutted above the cab roofline. The NS testbed units made an imposing sight in their black paint, and were soon joined by an additional 12 units, NS 8552-8563, built in 1984. While similar to their testbed siblings, these additional units featured slight changes to their carbodies, known as “phases” to railfans and modelers. The testbed units would be dubbed “Phase Ia”, while NS 8552-8563, with slight production changes to their radiator grills and dynamic brake compartment would be known as “Phase Ib” units.

Pleased with their performance, an additional 50 units were delivered in 1985, NS 8564-8613. “Phase II” units, they differed from the previous orders by featuring high-capacity dynamic brakes that resulted in an additional dynamic brake intake and exhaust opening (for a total of three), a handbrake wheel instead of ratchet handbrake, and a larger 4,400 gallon fuel tank replacing the 3,900 gallon tank of previous orders. Also eliminated were the vertical grab iron “ladder strips” on the end of the long hood. Rounding out the NS fleet would be an additional 50 units, built in two batches of 25 units each, NS 8614-8638 and NS 8639-8663, delivered in 1986. These so-called “Phase III” units would feature even more subtle changes; the radiator grills at the end of the long hood featured a slightly different configuration and a flush mounting, the cab doors changed to a square-cornered design, and the units featured a tall 42” snowplow at both ends, in contrast with the smaller 35” plow of previous deliveries.

Just when it seemed like NS would be the sole operator of the C39-8, eastern carrier Conrail ordered 22 units, delivered as CR 6000-6021, in 1986. Phase III units that shared some common features as their NS contemporaries, they did have some physical differences unique to Conrail; single-color red marker lights were installed instead of the tri-color class lights found on the NS units, and a massive anticlimber assembly was installed on the front pilot. Delivered in Conrail’s attractive blue and black scheme, they featured the then-standard large Conrail “Wheels on Rail” logo on the long hood.

On the NS, the C39-8s could often be found hauling one of NS’s key commodities at the time: coal. Setup with bidirectional control stands, it wasn’t uncommon to see a C39-8, or several, working long-hood first on a lengthy coal drag on NS territory. Conrail’s small fleet was commonly seen working on a variety of assignments, from mixed freight to intermodal. Both CR’s and NS’s C39-8s could be routinely seen operating as run-through power on connecting railroads, such as CSX, Union Pacific, and Southern Pacific. CR and NS C39-8s have been photographed far away from home; they’ve been seen as far west as Long Beach, California, operating on the Southern Pacific. In fact, a power-hungry SP leased Conrail C39-8s in the early 1990s, with the leased units featuring a small red “L” painted on their cab sides, signifying their leased status, and adding a splash of color to SP motive power consists over the system.

As the years and miles added up, the C39-8s of both CR and NS would undergo small physical changes. To aid crews climbing aboard, small vertical grabs would be added to the nose fronts of the NS units, while Conrail opted to add large “inverted-L” grabs to the noses of theirs for the same purpose. Repaints in later years would introduce new paint scheme variations; some NS units would receive dashed white sill stripes, while some CR units would receive solid white frame stripes. Several CR units were noted to receive the “Conrail Quality” paint scheme, as well. Their as-built class lights eventually disappeared from the NS fleet, and by the mid-1990s, FRA-mandated ditch lights began to appear on both the CR and NS fleets.

The year 1998 brought more change, as Norfolk Southern and CSX acquired Conrail. The eastern giant was split between the two carriers, including locomotives and rolling stock. NS received 13 former CR C39-8s, while the remaining 9 CR C39-8s went to CSX. While most kept their blue paint, gaining a “patch” renumber into the CSX fleet, four of them received CSX paint – two painted in YN2, and two receiving YN3. Norfolk Southern repainted several of their former Conrail C39-8s as well, exchanging their coats of Conrail Blue for NS black.

By the early 2000s, with many miles racked up by the C39-8s, and newer, more reliable and fuel-efficient locomotives coming online, the trailblazing GEs began to be set aside in deadlines, with many meeting the scrapper’s torch. Some were spared that fate, being exported to Central America, home to railroads with a healthy appetite for used US locomotives. A handful found new homes on US shortlines and lease operators, but their use was to be short-lived. As of this writing, the only examples in operation in the US are a pair of former Conrail (by way of NS) units in use by eastern shortline Pennsylvania Northeastern Railroad. While no longer hustling along the high iron with long coal or hotshot intermodal trains in tow, the PNRR’s pair of units operates regularly, and represents the last of GE’s pioneering early DASH 8s.

FEATURES:

• New road numbers
• Series 6000 to 6021, built 1986
• Road number 6009
• Mid to late 1990s appearance
• Operating ditch lights on front pilot face – alternately flash when horn is blown, per prototype
• Mixed Adirondack and GSC trucks with rotating Timken bearings; separate brake cylinders, center axle shock snubber, brake lines and handbrake chain detail; and separate sanding lines and brackets
• Retrofitted “inverted-L” nose grab irons
• Retrofitted tall vertical grab iron on rear end of long hood
• Conrail ‘Quality’ scheme
• Fully-assembled
• Multiple road numbers
• Operating LED-illuminated ground lights on both sides of locomotive*
• Operating LED front, rear, and side walkway lights*
• Operating LED-illuminated tricolor front and rear class lights with lenses**
• Printed and LED-illuminated front and rear number boards*
• Small front and rear snowplows with wire grab irons
• Semi-scale coupler buffers equipped with durable metal semi-scale standard Type E knuckle couplers
• 3-hose multiple unit (MU) hose clusters with silver gladhands
• See-through round-hole stepwell steps
• Front and rear drop steps
• GE “nub” tread plate on walkways
• Short hood with blanked lower headlight housing
• Detailed cab interior with separate floor, rear wall, seats, and control stand
• Cab sunshades
• Sliding cab side windows
• Dual wind deflector with mirror mounted fore and aft of sliding cab windows on both sides
• Sunshades on both sides of cab
• Dual Motorola ASP-16 “Firecracker” antennas on cab roof (communication and End of Train EOT)
• Nathan P135R24 horn mounted on engine compartment roof
• See-through dynamic brake exhaust
• 24 individually applied etched metal see-through radiator intake and exhaust grilles on sides and top of radiator compartment
• Early 6-panel radiator exhaust grilles
• Exhaust silencer with extension
• Accurately profiled frame with separately applied plumbing and cabling
• GSC trucks with Hyatt bearing housings; separate brake cylinders, center axle shock snubber, brake lines and handbrake chain detail; and separate sanding lines and brackets
• Dual Graham-White (Prime) finned 075 air filters
• Highly-detailed 4,400 gallon fuel tank with fuel fillers, round and vertical fuel gauges
• Air reservoirs with separate plumbing
• Factory-applied wire grab irons, spare knuckles, trainline hoses with silver gladhands, MU cables, uncoupling levers, windshield wipers, underframe bell, and more
• Motor with 5-pole skew wound armature
• Dual flywheels
• All-wheel drive
• All-wheel electrical pick-up
• Printing and lettering legible under magnification
• Operates on Code 70, 83, and 100 rail
• Packaging safely stores model
• Minimum Radius: 18”
• Recommended Radius: 22”
• DC/DCC & sound-ready locomotives also feature:
• Operable on DC layouts
• DCC-ready with 21-pin connector

* Lighting features operate when using an ESU decoder with appropriate programming while operating using DCC
** Class lights illuminate in white color only in DC operation. Access and changing colors requires an ESU decoder with appropriate programming while operating using DCC
*** In DC operation, both front ditch lights illuminate; rear ditch lights (if equipped) do not illuminate
